Hardware diagnostics#

I took out my old Galaxy S4 to check if it would still work.

• Screen Condition: Cracked but touchscreen functional.
• Battery: No deformation, no swelling—surprising after ten years of inactivity.
• Charging Cable: An old micro-USB found in my cable crate.

In thirty minutes, the phone was 80% charged and ready to go.

First problem: the lock screen#

The smartphone boots up without a problem… but a lock pattern I’d forgotten six years ago was blocking access.

After some research, I discovered a trick:

After five failed attempts, a 30-second delay is required.

At this point, an “Emergency Code” option appears.

By testing my old codes, I finally found the correct one and accessed the device.

The phone was working again, with its music, text messages, and old photos.

Second problem: a PIN code that doesn’t exist#

After disabling the pattern, I locked the screen to test… but this time, I was asked for a PIN code. I couldn’t enter it correctly: I’d never set one!

Many forums suggested a complete reset as the only solution, which would have erased all my data. But after several hours of searching, I came across an old Reddit thread where someone had encountered the exact same problem.

This is where the technical part begins.

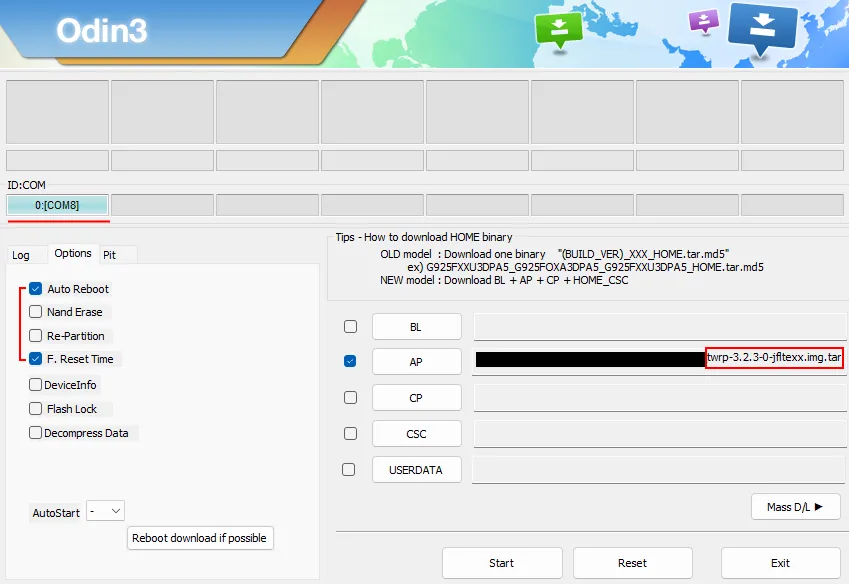

Install Odin#

Windows software developed by Samsung, allowing you to flash ROMs and system images on Galaxy phones.

• Useful for installing a custom recovery like TWRP.

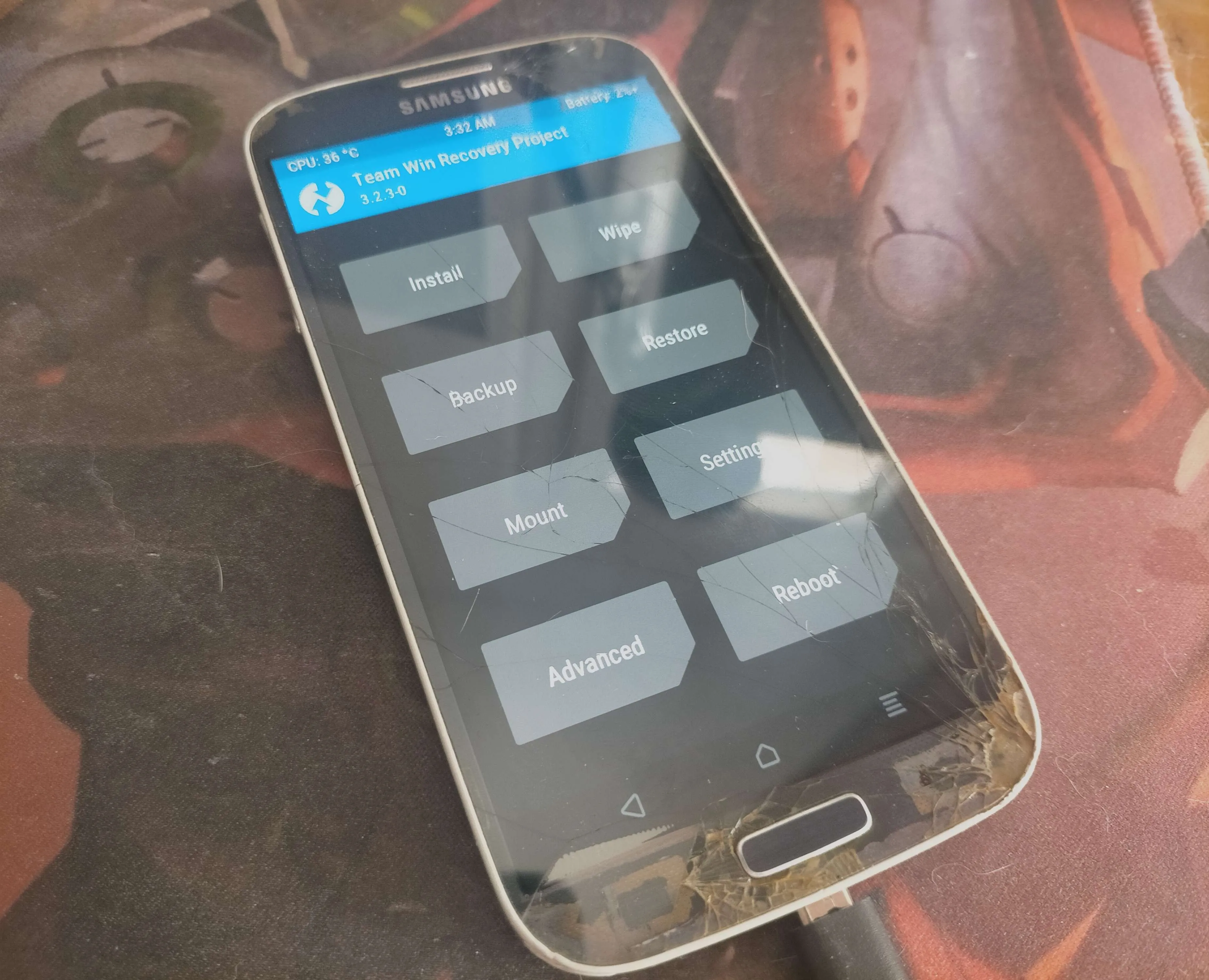

Download TWRP (Team Win Recovery Project)#

An alternative recovery offering advanced access to the file system, allowing you to manipulate partitions, install custom ROMs, and access internal files.

Unlocking PC to smartphone communication#

The phone wasn’t recognized initially.

Solution: Install Samsung USB driver for mobile phones.

Need to disable Windows kernel integrity to allow driver installation.

Usually locked by Windows, if you can’t change it, change the value of Enabled in the registry at

1
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard\Scenarios\HypervisorEnforcedCodeIntegrity

Do not forget to turn back on when you’re done

Flash the correct recovery#

After several unsuccessful attempts (wrong TWRP version, unusable screen), I finally found a compatible generic version.

Always check the exact version for your model before flashing

Deleting the lock files#

From TWRP recovery mode:

Navigate to /data/system/

Delete the following files:

• gesture.key
• password.key
• locksettings.db
• locksettings.db-wal
• locksettings.db-shm

After rebooting, the phone no longer asks for a password

Other usecases: Rooting your device#

Using the exact same procedure, you can use Odin to flash root software to your device instead of TWRP.

Cybersecurity watch points#

• Privacy: These manipulations demonstrate that older locking systems are vulnerable. With time and a few tools, a motivated attacker can bypass the security.

• Obsolescence: Android 5 or 6 no longer offer security updates. For network use (ATAK, Meshtastic), the device must be isolated from the internet and mitigate risks, especially if your device is rooted.

• Best Practices:

  • Always encrypt sensitive data.
  • Avoid using an old phone as a personal device.
  • Reserve these devices for testing, research, and controlled environments.
